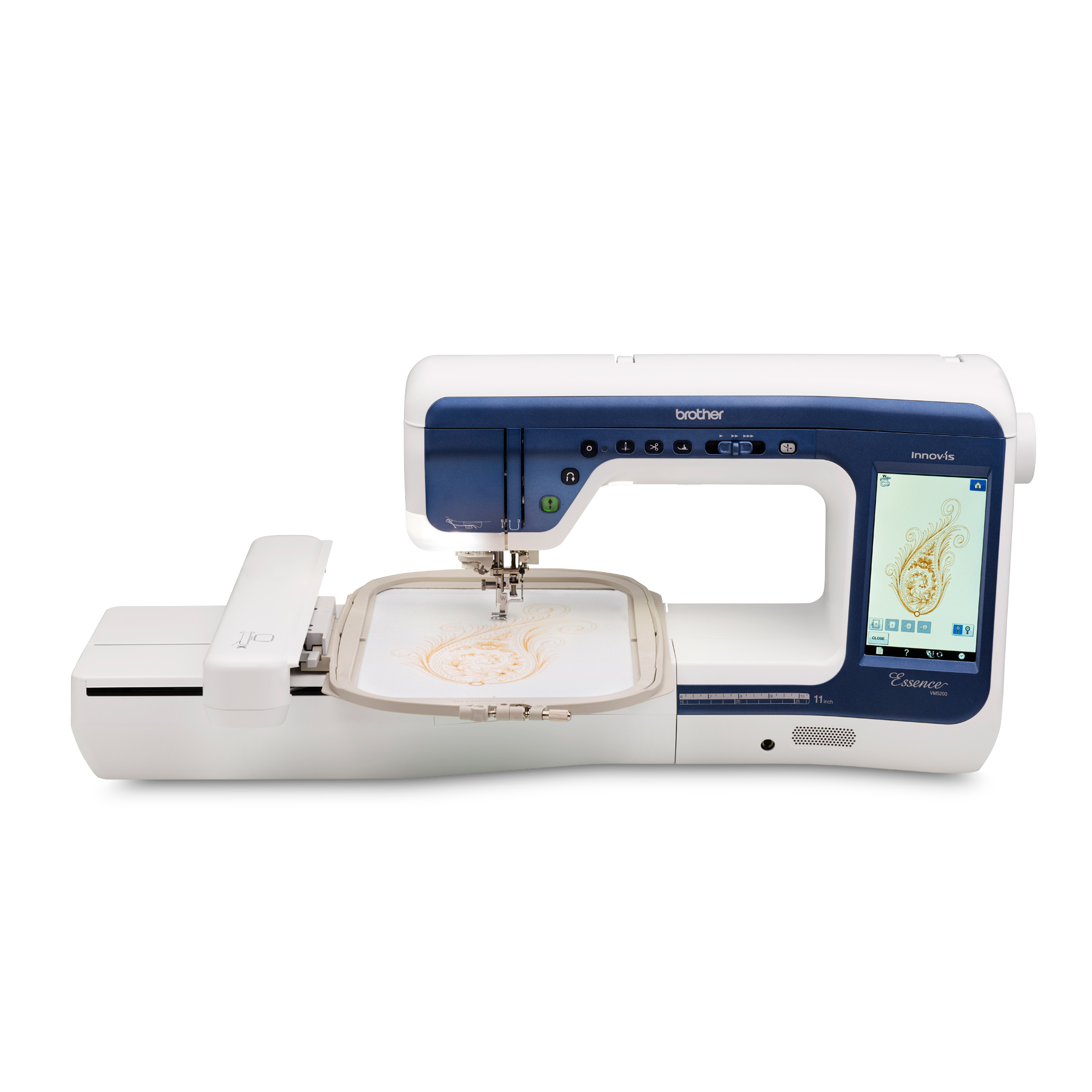

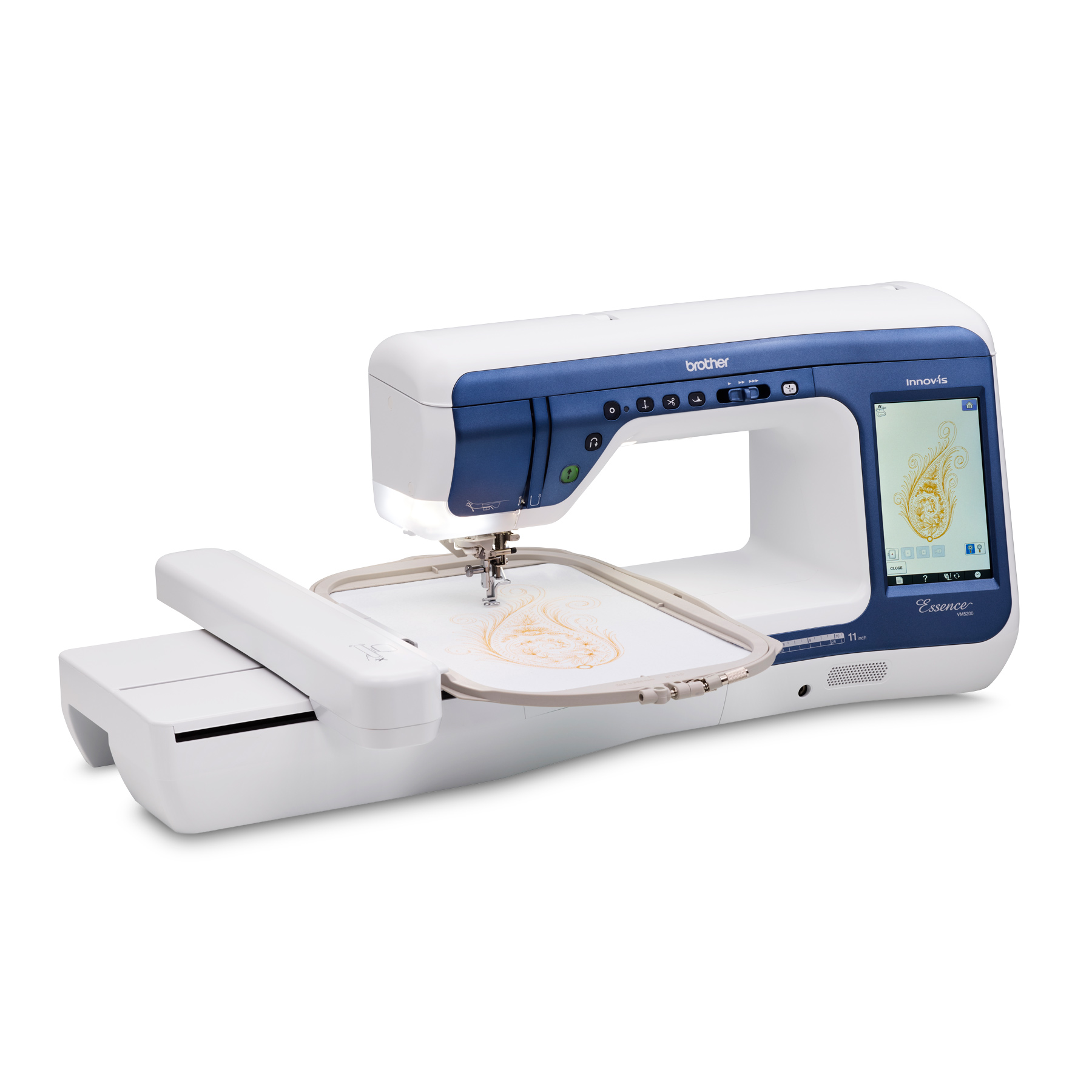

Brother VM5200 Essence Sewing, Quilting & Embroidery Machine
- Model #:
- VM5200 VM5200Brother
Discover the VM5200 sewing, quilting and embroidery machine the latest in innovative convenience and capability from Brother. Loaded with 745 built-in stitches, 318 embroidery designs and 17 fonts and offering advanced features like an 8 x 12 embroidery area, 10 LED lighting, an 11.25 ... See full product description
Hoop size
8" x 12" incl.
Built-in designs
318
Workspace
5.0" x 11.25"
Built-in stitches
745
Included accessory feet
12
Product Description
The Essence VM5200 packs lots of new advanced features into one sewing, quilting and embroidery machine for endless creative possibilities. With a larger than ever 8 x 12 embroidery area, 10 LED lighting that s up to 50% brighter than most Brother models and an 11.25 workspace that handles even your largest projects, this is the machine serious quilters will want to get their hands on. Its 7 LCD touchscreen display lets you view onscreen tutorials and control the machine with large, intuitive icons and with 745 sewing stitches, 318 embroidery designs, and 17 lettering fonts, it s a sure bet your creativity will explode with this whole new level of performance. Get ready to be impressed by the new capabilities and convenient functions offered by the new Essence from Brother.
Main Features
- 745 sewing stitches (715 built-in and 30 on CD), 318 embroidery designs and 17 lettering fonts
- Large 8 x 12 embroidery area accommodates larger designs
- 11.25" workspace helps tackle even the biggest projects with ease
- 10" LED lighting up to 50% brighter than most Brother machines
- 7" LCD touchscreen display lets you view on-screen tutorials and control the machine with large, intuitive icons
- Create more in less time with fast embroidery speeds up to 1,050 stitches per minute
- Automatic thread trimming cuts threads between colour stitch blocks
- Automatic presser foot functionality automatically raises or lowers the presser foot after trimming with the standard foot or optional multifunction foot controller
- Multiple line text formatting enables embroidery of fonts on multiple lines with the push of a button and easily adjusts the location by using the touchscreen arrows
- Flexible presser foot height and pivot function settings for more types of fabric and layers
Sewing Features
| Automatic Presser Foot Lifter | Yes |
| Buttonhole Styles | 14 one-step |
| Reinforcement/Reverse Stitches | Yes |
| Stitch Width | 7mm |
| Needle Stop Position | Yes |
| Needle Position Key (Up/Down) | Yes |
| Back to Beginning Key | Yes |
| Stitch Length | 5mm |
| Free Arm | Yes |
| Lockstitch Key | Yes |
| Max. Sewing Speed (stitches per minute) | 1,050 |
| Twin Needle Setting Key | Yes |
| Start/Stop Button | Yes |
| Presser Foot Levelling | Yes |
| V-Sonic™ Pen for sewing | Feature not available |
| Feed Dog | 7 (longer version) |
| Bed Area (depth x width) inches | 7.7" x 15.6" |
| Speed Controller | Yes |
| Work Space (Height & Width) inches | 5.0" x 11.25" |
| Built-in Sewing Lettering Fonts | 5 |
| Presser Foot Pressure Adjustment | Yes |
| Side Feeding | Yes |
| Projected Gridline Marker | No |
Embroidery Features
| Built-in Embroidery Designs (non-license) | 318 |
| Max. Embroidery Area (X x Y) | 8" x 12" |
| Built-in Frame Designs | 10 Shapes x 14 Stitch Patterns |
| Snowman® Embroidery Positioning Marker | Feature not available |
| Drag & Drop Editing | Yes |
| Cap Frame Capability | Feature not available |
| Pattern Rotating | 1, 10 or 90 Degrees |
| Appliqué Creator Function | Feature not available |
| Built-in Embroidery Lettering Fonts | 17 |
| V-Sonic™ Pen Pal for embroidery | Feature not available |
| Built-in Disney/Pixar® Character Designs | No |
| InnovEye™ Technology | Feature not available |
| Built-in Border Function & Designs | Yes |
| Space Reduction in Embroidery Alphabets | Yes |
| Colour Shuffling™ Function | Feature not available |
| Programmable Monochrome Embroidery | Yes |
| On-Screen Automatic Density Adjustment (STB) | Yes |
| Thread Wiper | Yes |
| Droplight™ Embroidery Positioning Marker | Available for additional purchase |
| InnovaChrome™ LED Thread Colour System | Feature not available |
| My Custom Design™ Feature | Feature not available |
| Colour Sort | Yes |
| Curving Text on Screen Editing | Yes |
| Max. Embroidery Speed (stitches per minute) | 1,050 |
| Included Embroidery Hoops | 5" x 7" Frame,8" x 12" Frame |
| Automatic Feed Thread Cutting | Yes |
| Resume Function | Yes |
| Sewing Decorative Stitches w/Embroidery Arm | Yes |
| Compatible with Brother Embroidery Software | Yes, available for additional purchase |
| Trial Position/Layout Function | Yes |
| Projected LED Embroidery Pointer | No |
Quilting Features
| Knee Lifter | Included |
| Automatic Height Adjuster™ AHA® Feature | Yes |
| Pivot Function | Yes |
| MuVit™ Digital Dual Feed | Available for additional purchase |
| Built-in Quilting Stitches | Yes |
| Drop Feed/Free Motion | Yes, manual |
| Free Motion Quilting Foot | Included |
Carton Contents
| Other Included Accessories | 2 Embroidery Frame Sets,Bobbins,Cord Guide Bobbin Cover,Embroidery Bobbin Thread,Embroidery Needle Plate Cover,Foot Controller,Grid Sheet Set,Knee Lifter,Spool Caps,Stabilizer Material,Straight Stitch Needle Plate |
| Protective Case | Soft cover included |
| Included Accessory Feet | 1/4" quilting foot with guide,Blind stitch foot,Button sewing foot,Buttonhole foot,Free-motion echo quilting foot,Free-motion open toe quilting foot,Free-motion quilting foot,Monogramming foot,Overcasting stitch foot,Straight stitch foot,Zigzag foot,Zipper foot |
| Wide Table | Available for additional purchase |
| Standard Presser Feet Included with Machine | 12 |
| Foot Controller | Included |
Other
| Warranty | 25-Year Limited Warranty |
Basic Features
| LCD Size (inches) | 3.6" x 6.0" |
| Media Type(s) | USB |
| Software Upgrades | Yes |
| On-Screen Editing | Yes |
| Thread Sensor On/Off | Yes |
| Thread Sensor | Upper and bobbin |
| Stitch Select | Touch Panel |
| Opening Screen | Yes |
| Adjustable Bobbin Winding Speed | Yes |
| Lighting | LED 10" Lighting |
| Easy Bobbin Winding | Automatic bobbin winding system |
| Quick Set™ Bobbin | Yes |
| Computer Connectivity with Update Capability | Yes |
| Needle Threading System | Yes |
| Projector | No |
| Automatic Thread Cutter | Yes |
